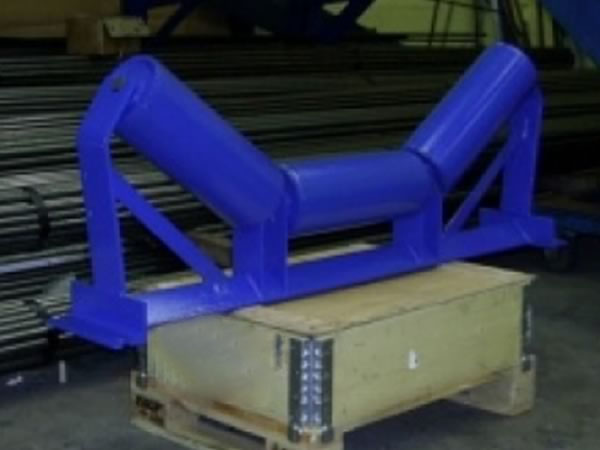

Abbey Fixed Angle Troughing Sets
When you purchase an Abbey Fixed Angle Troughing Set you can be assured of the highest quality available. These sets are made using the same heavy duty machined cast iron end covers, machined shafts, double lip rubber seals and sealed for life 2RSC3 bearings as the Abbey Variable Angle Troughing Set. The side rollers are supported by an external side support therefore each side roller has a projecting shaft at both the top and bottom of every side roller. However, excellent bearing protection is still achieved due to the abbey roller patented design and construction with the 2RS C3 bearing housed within the cast iron end cover behind the double lip seal. Each roller drops into slots on the base frame. The side rollers are fixed (angle cannot be altered) at a specific angle to customer requirements using the outside support. The centre roller is inline with the two side rollers.
Rollers on the fixed angle troughing set can be made of equal length or to abbey roller lengths depending on the belt width.
Please click on one of the images below for more information
